FRANKLIN SB FO E PS CI HI WPA HRO SR
CE EN ISO 20345:2022
HRD052T

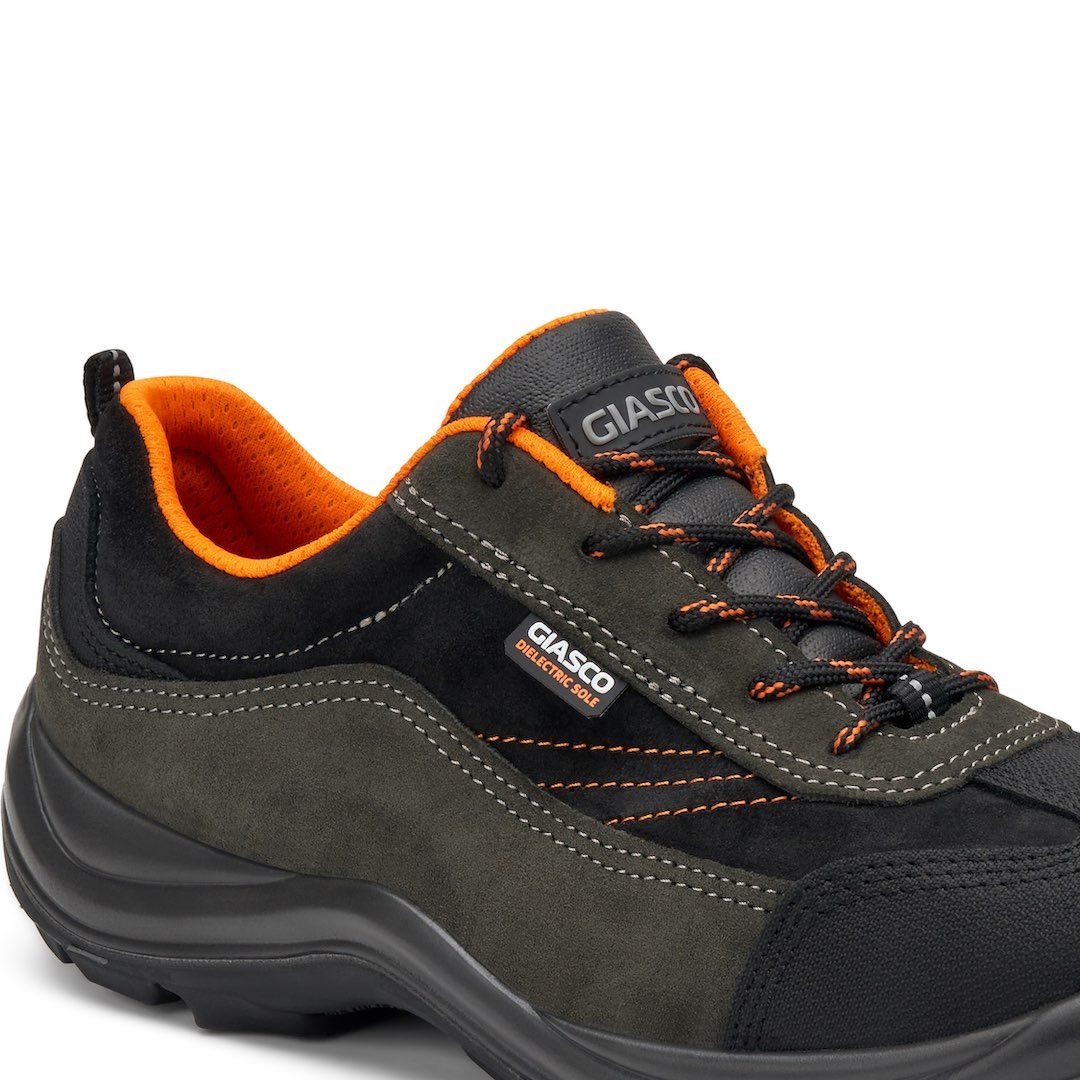

Low safety shoe
37-47
Description
  • Toecap: 200J polymeric composite non-thermic
  • Upper: Suede leather 1,8-2,0 mm and Technical textile
  • Midsole: PS certified antiperforation dielectric composite fabric
  • Insole: Dielectric insulating foam open-cell polyurethane extra comfort
  • Sole: Rubber/Outsole, PU/Midsole
  • Other: 20.000V Sole Insulation (ASTM 2413-11, C.S.A. Z195-14, INSULATING SOLE FROM 1.000 M), HRO +300°C
Technical documents
Contact us
FRANKLIN SB FO E PS CI HI WPA HRO SR
37-47
Contact us
Description and further information

Low safety shoe, WRU suede back leather, toe in anti-scratch leather
thickness 1,8-2,0 mm. Highly perspiring and abrasion resistant fabric lining. Soft, lined and padded tongue.
COMPLETELY METAL FREE SHOE
TOECAP 200J polymeric composite non-thermic according to EN 12568
MIDSOLE flexible antiperforation composite INSULATING fabric according to EN 12568
SOLE HARD ROCK INSULATING bidensity polyurethane and INSULATING RUBBER resistant to hydrocarbons and to abrasion, anti-shock and anti-slipping SRC
Article HRD052T has been tested using a method analogous to ASTM F2413-24 (EH) and CSA Z195-14: determination of resistance to an electric shock, increase 1 kV/sec, voltage 20,000 V/60 Hz  holding the voltage for 1 minute. Electrical current requirement below 1.0 mA.
The outsole of the footwear, within specific limits (in the absence of moisture, not referring to the upper), was tested using a method analogous to EN ISO 20345:2022 to provide electrical insulation against voltages up to 1000 V  M ohm >1000.
(Test report No. 4325006.01/EA)
DIELECTRIC INSOLE, removable, anatomic, absorbing, insulating and perspiring
FO sole resistance to hydrocarbons
E energy absorption on seat region
P antiperforation midsole
HRO resistance to hot contact of the outsole

THIS PRODUCT COMPLIES WITH THE REQUIREMENTS OF THE STANDARD ASTM F2413-24:
- Impact resistant footwear (I)
- Compression resistant footwear (C)
- Puncture Resistant Footwear (PR)
- Electric Hazard Resistant Footwear (EH)
- Slip Resistance (SRO)
Size 37-47 Shoe weight Sz 42 gr. 600

Size guide
Size guide
Comparison table of measurements
EUROPAUKUSMILLIMETERSINCHES
35
2,5

3,5

225

8,9

36
3

4

232,5

9,2

37
4

5

240

9,5

38
5

6

247,5

9,7

39
6

7

255

10

40
6,5

7,5

262,5

10,3

41
7

8

270

10,6

42
8

9

277,5

10,9

43
9

10

285

11,2

44
10

11

292,5

11,5

45
10,5

11,5

300

11,8

46
11

12

307,5

12,1

47
12

13

315

12,4

48
13

14

322,5

12,7

49
14

15

330

13
Recommended areas of use
Electrician
Certifications applied
Heel Energy Absorption
Heel Energy Absorption
Certifications
Heel Energy Absorption
Footwear with energy absorption in the heel to reduce impact while walking. Enhances comfort and protects joints in demanding work environments.
ASTM F2413-24
ASTM F2413-24
Certifications
ASTM F2413-24
ASTM F2413-+E18:E6924 specifies the safety, performance, and protective requirements that safety footwear must meet according to U.S. standards.
Insulation up to 20,000V
Insulation up to 20,000V
Certifications
Insulation up to 20,000V
Dielectric soles insulated up to 20,000 V, designed to shield the operator from high-voltage electric discharges in electrical or industrial work environments.
Puncture-Resistant Plate
Puncture-Resistant Plate
Certifications
Puncture-Resistant Plate
A puncture-resistant layer embedded in the sole protects the foot from sharp objects and perforations, ensuring safety in hazardous work environments.
Water Penetration and Absorption (WPA)
Water Penetration and Absorption (WPA)
Certifications
Water Penetration and Absorption (WPA)
The upper material is tested to resist water penetration, keeping feet dry even in wet or rainy environments.
PS Puncture Resistance with Non-Metallic Insert (nail Ø 3.0mm)
PS Puncture Resistance with Non-Metallic Insert (nail Ø 3.0mm)
Certifications
PS Puncture Resistance with Non-Metallic Insert (nail Ø 3.0mm)
Anti-perforation plate inserted in the sole to protect the foot from sharp objects and punctures, ensuring safety in hazardous work environments. PS puncture resistance with non-metallic insert (nail Ø 3.0mm)
Hydrocarbon Resistance
Hydrocarbon Resistance
Certifications
Hydrocarbon Resistance
Footwear resistant to hydrocarbons, designed to maintain the properties of the sole when in contact with oils and fuels. Ideal for industrial environments and workshops.
Slip Resistance (mandatory ceramic-Nals test)
Slip Resistance (mandatory ceramic-Nals test)
Certifications
Slip Resistance (mandatory ceramic-Nals test)
According to EN ISO 20345:2022, slip resistance is a mandatory requirement and is tested on a ceramic surface contaminated with sodium lauryl sulfate (NaLS) solution. This test, stricter than previous versions, simulates real slipping conditions and ensures that all certified safety footwear provides a minimum level of grip. The SRA, SRB, and SRC classifications have been removed in the new regulation, making the NaLS ceramic test the standard.
Slip Resistant Sole
Slip Resistant Sole
Certifications
Slip Resistant Sole
Slip-resistant sole with special compound and tread pattern designed to ensure maximum grip on wet or slippery surfaces. Improves safety during work.
Heat-Resistant Sole 300°C Contact
Heat-Resistant Sole 300°C Contact
Certifications
Heat-Resistant Sole 300°C Contact
Sole resistant up to 300 °C, ideal for protecting the foot in high-temperature industrial environments or when working with hot materials.
Technical materials
Mondo Point 11
Mondo Point 11
Technical materials
Mondo Point 11
Mondo Point is an international standard indicating the type of fit of a particular shoe. In terms of fit, Mondo Point 11 indicates a wide, roomy, and comfortable shoe for the foot.
Metal-Free
Metal-Free
Technical materials
Metal-Free
Metal-free work shoes, free of metal components, lightweight and comfortable, ideal for environments with high security checks. Offers protection and flexibility without interfering with metal detectors.
No metal
No metal
Technical materials
No metal

High-resistance TEXTILE anti-perforation midsole. Protects the foot from penetration by dangerous and sharp objects. At the same time, it ensures maximum flexibility and lightness for the foot.
COMPOSITE toe cap resistant to impacts up to 200 Joules, lightweight and metal-free, ideal for safely protecting the toes without adding weight to the footwear.
Unlike other materials, composite offers several advantages: thermal insulation (does not transmit heat), non-magnetic (not detected by metal detectors), and memory (in case of compression, it returns to its original shape, leaving toes free).

Slip Resistance (optional glycerin test)
Slip Resistance (optional glycerin test)
Technical materials
Slip Resistance (optional glycerin test)
The slip-resistant sole features a special compound and tread pattern designed to maximize grip on wet or slippery surfaces, improving safety on the job.
